Excalibur® Flanged Check Valve


DFT Excalibur Flanged Check Valve
  • The DFT® Excalibur Silent Check Valve is a spring-assisted, center guided, in-line, check valve that provides reliable, low maintenance service for a wide range of fluids and pressure/temperature combinations.

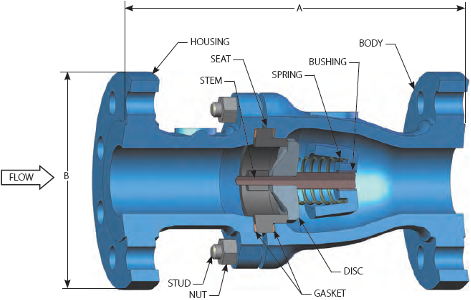

  • The valve consists of a body, gasket, seat, spring, disc with stem and guide bushing.
  • Excalibur check valves are available in a wide range of sizes and pressure ratings and in a variety of metals to meet most check valve requirements.

Documentation:
Product Specifications
(145KB PDF)

DFT Valve 		DFT Certification
